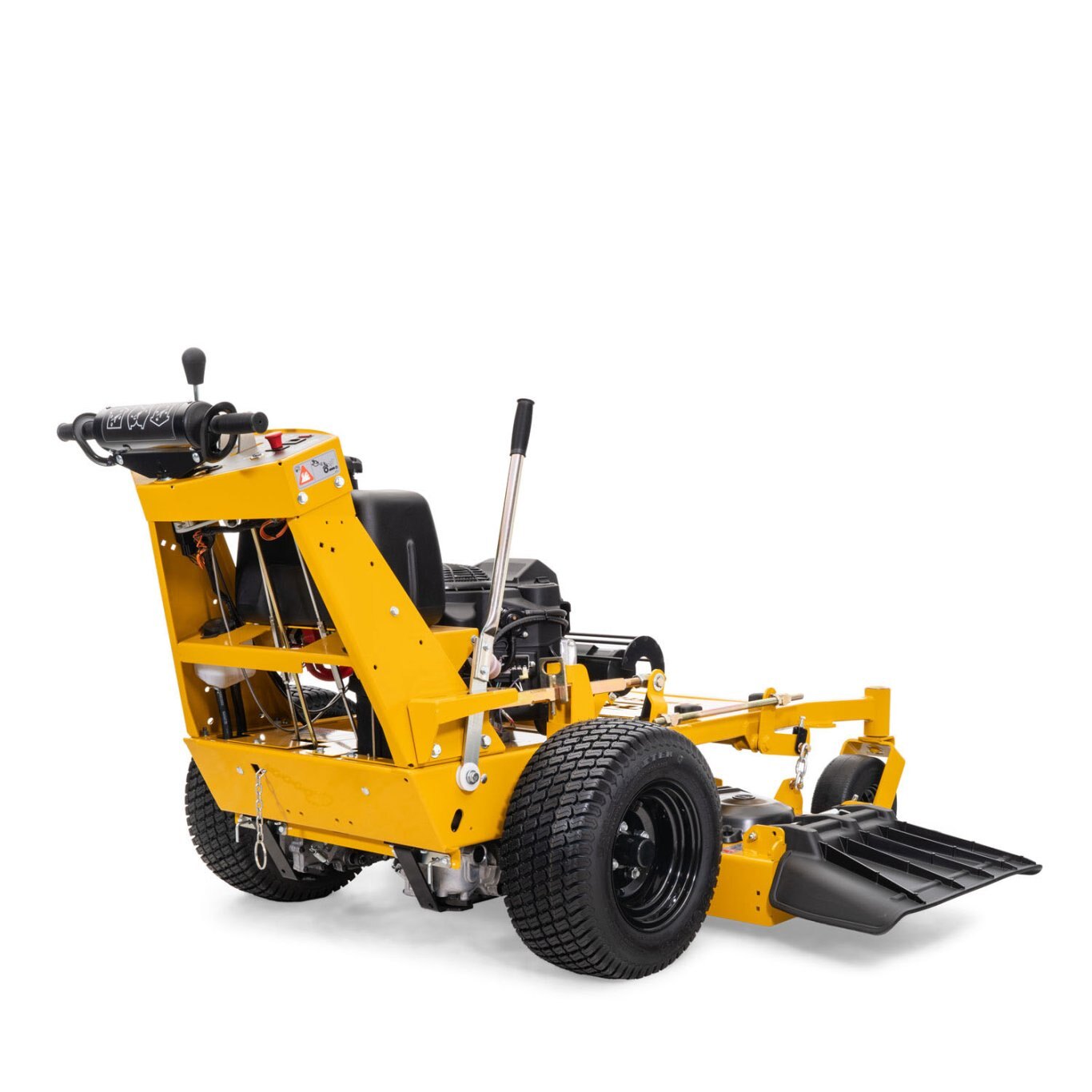

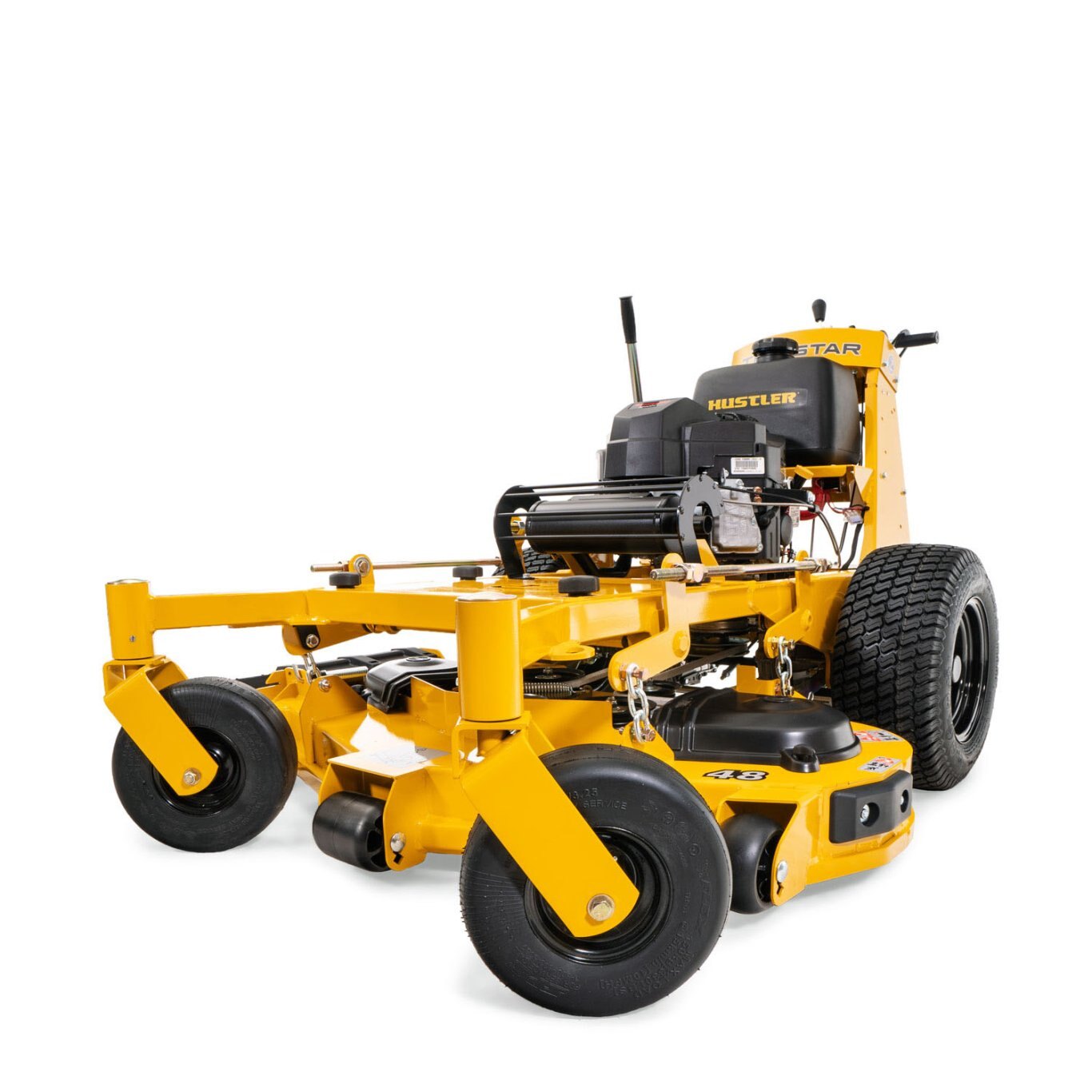

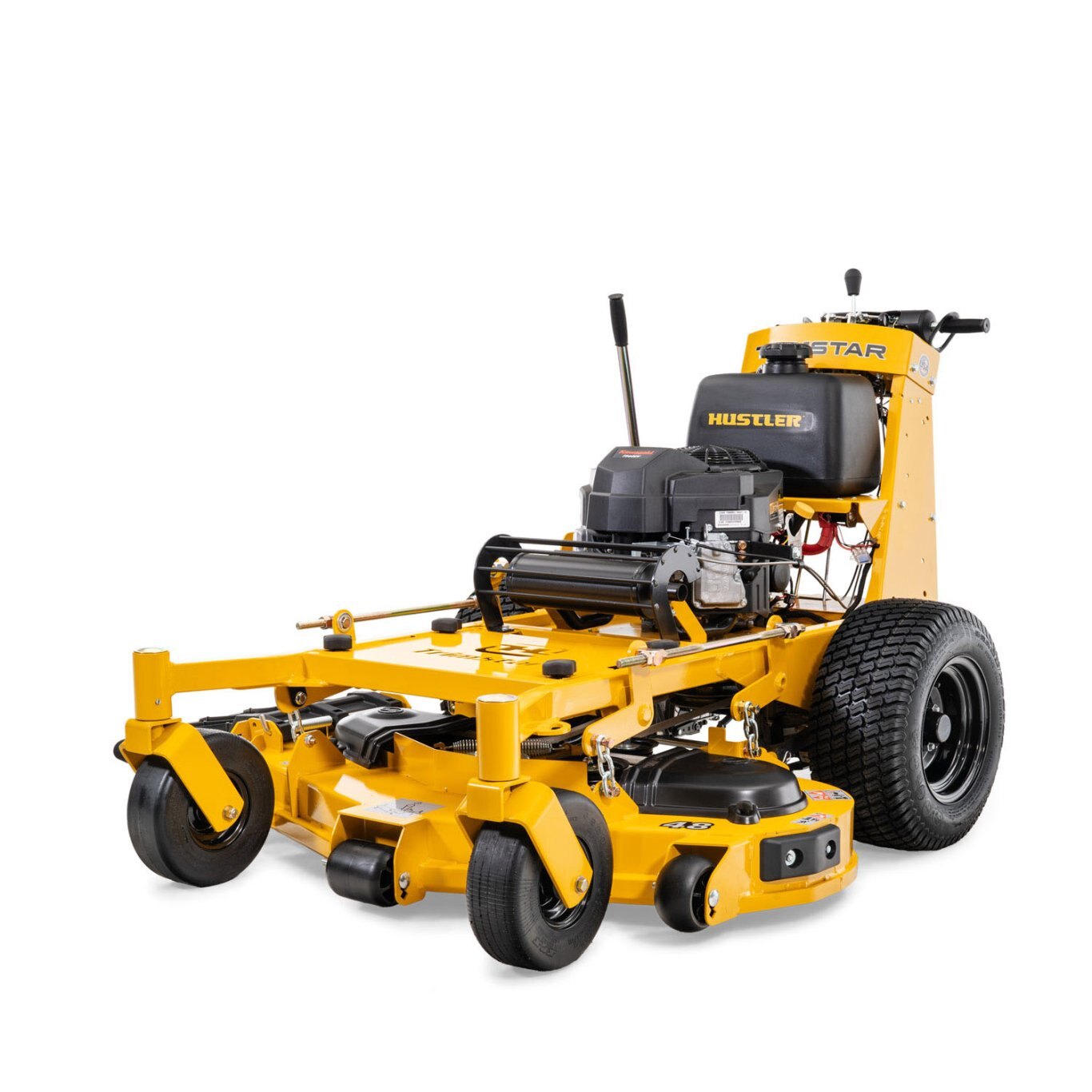

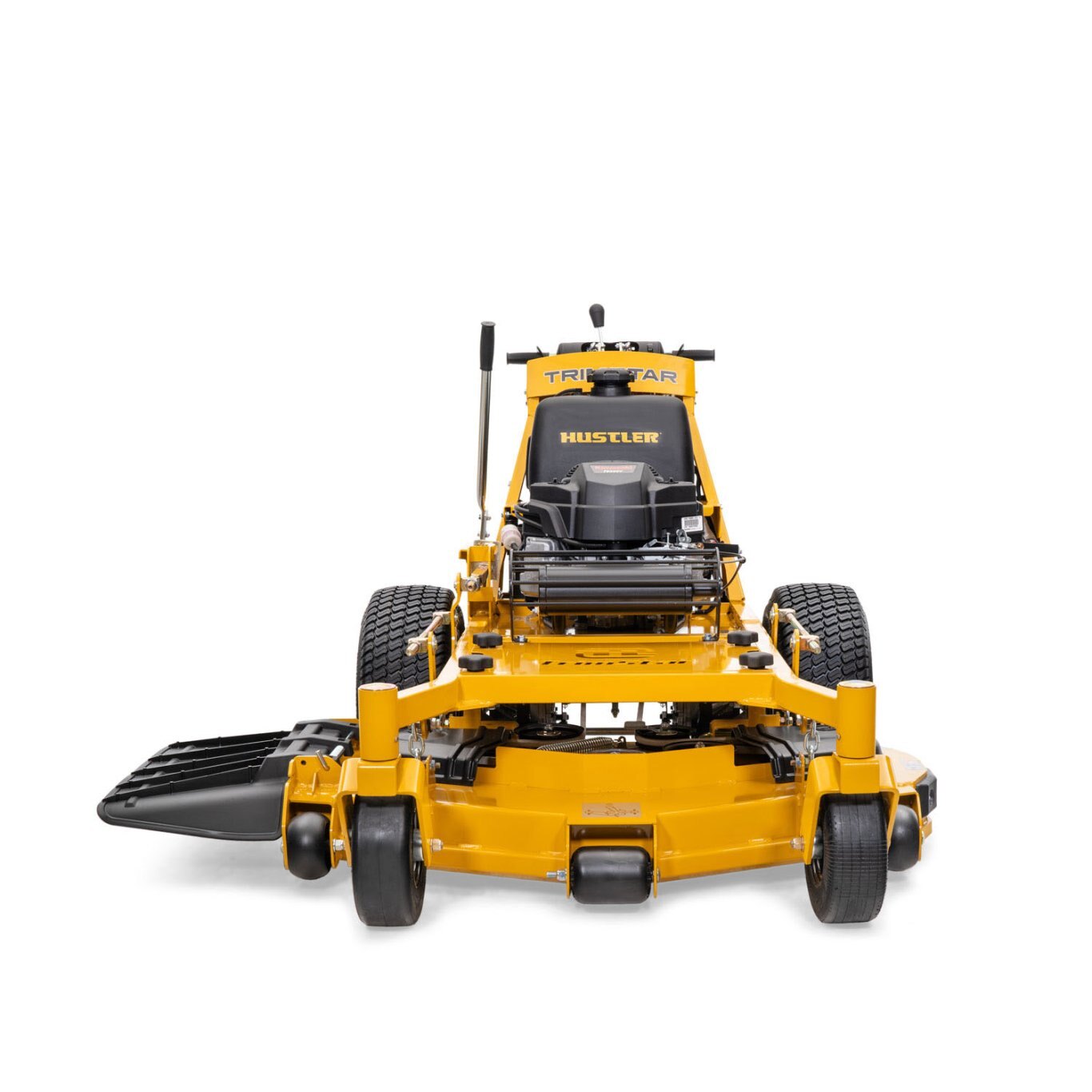

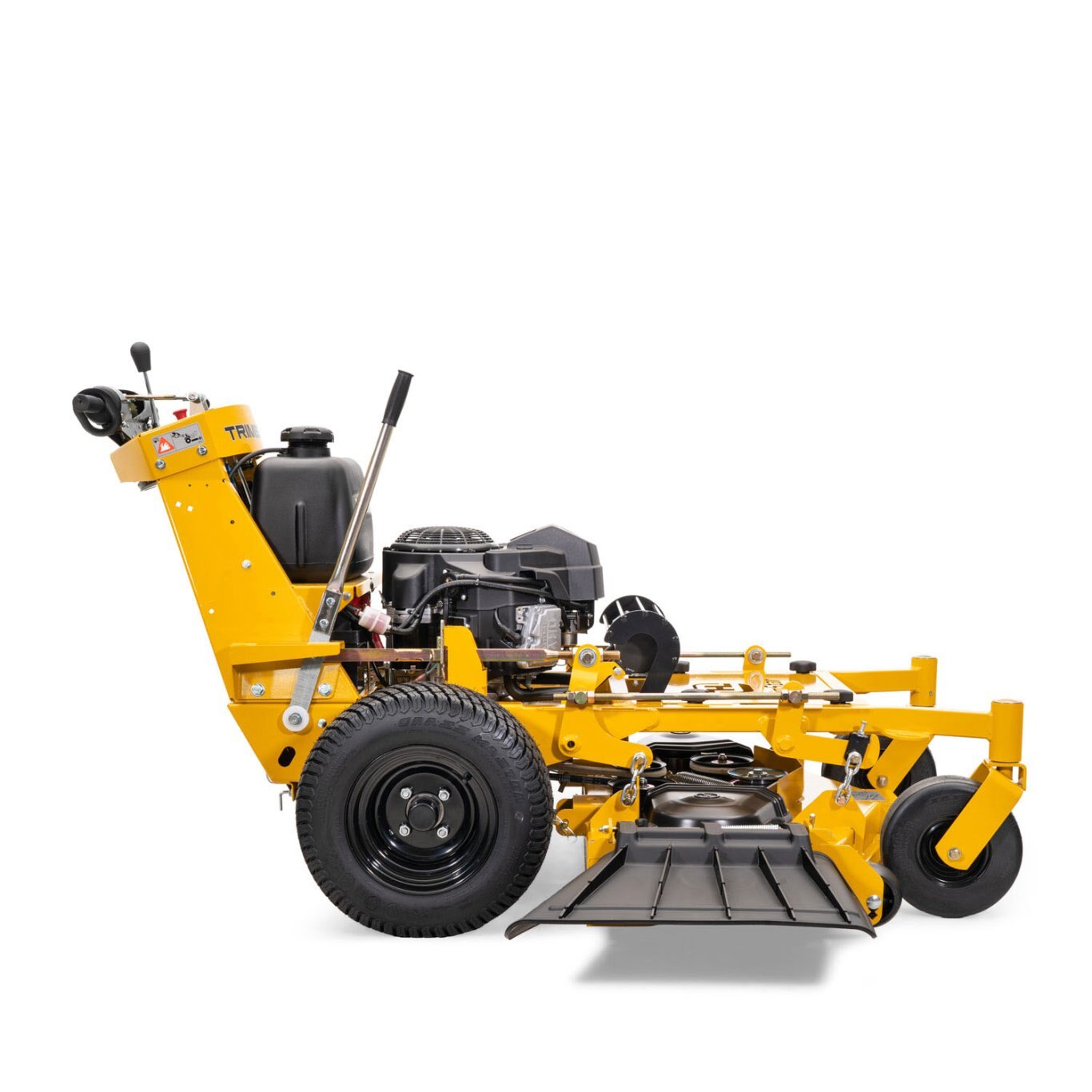

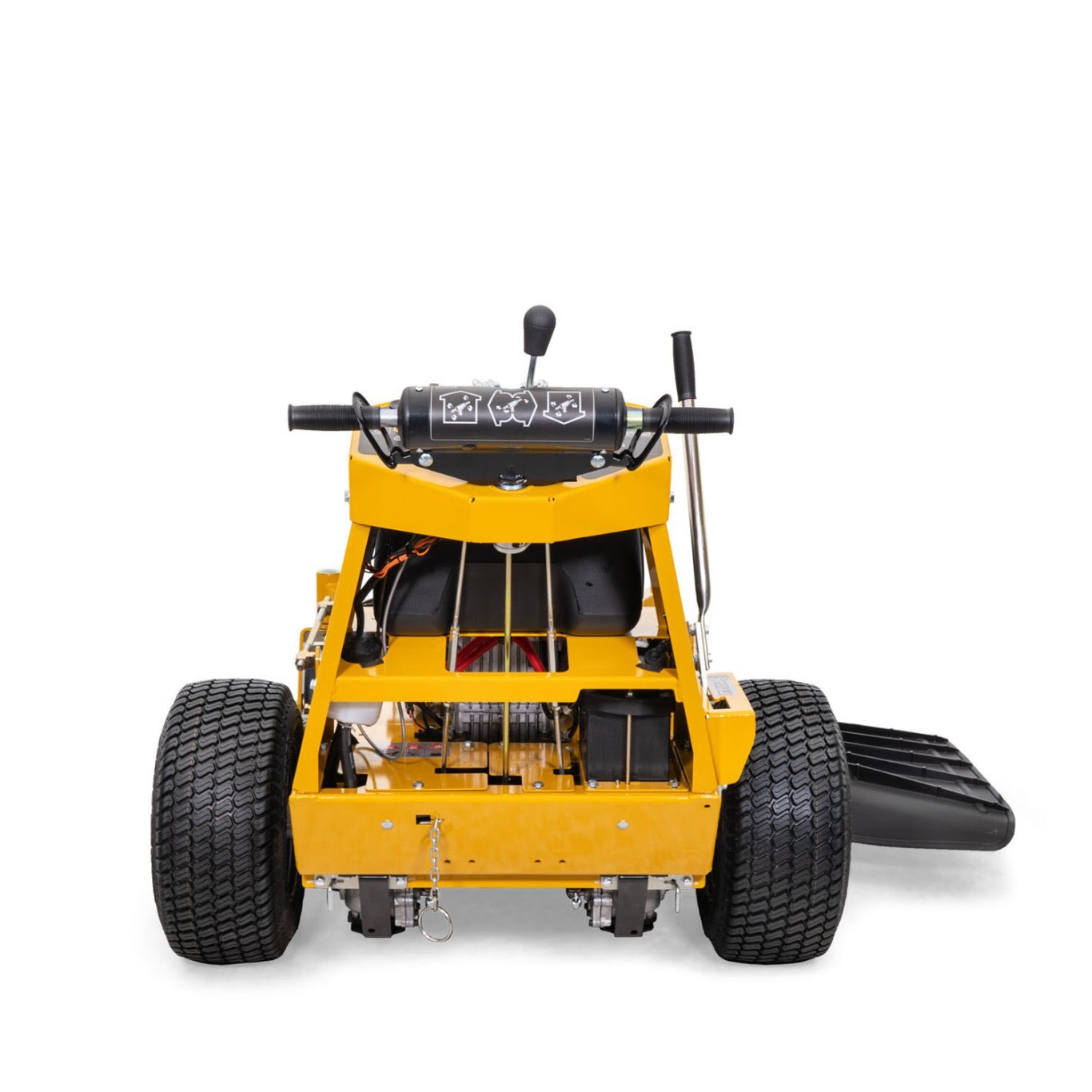

Hustler TrimStar-36"

  • Hustler TrimStar 36
  • Hustler TrimStar 36
  • Hustler TrimStar 36
  • Hustler TrimStar 36
  • Hustler TrimStar 36
  • Hustler TrimStar 36
 Get Financed
Overview
Overview
A Walk-Behind With Maximum Stability, Ease-Of-Control.

Hustler's TrimStar® is a perfect addition to any commercial mower fleet. It makes access to hard-to-reach spots easy and is designed to help reduce operator fatigue.

  • 15hp - 23hp Kawasaki Engines

  • 36", 48", 54” & 60” decks

  • Up to 6.3 mph mowing speed

  • 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine

Deck Sizes

15HP - Kawasaki FS541 (Electric Start)

 36”

18.5HP - Kawasaki FS600 (Electric Start)

 48”

22HP - Kawasaki FS651 (Electric Start)

 54”

23HP - Kawasaki FS691 (Electric Start)

 60”
Specifications
Model
TrimStar
Category Name
Zero Turn Mowers
Year
2025
Sale Type
New
Manufacturer
Hustler
Quantity
0
Manufacturer Qty
0
features

Hustler TrimStar 36

H-Bar® Steering

Patented steering is the easiest-to-use walk-behind system in the field, reducing operator fatigue.

Hustler TrimStar 36

Deck Lift

Easy-to-operate deck lift makes deck height adjustment a breeze.

Hustler TrimStar 36

Dual Hydro System

Heavy-duty traction and performance.

Hustler TrimStar 36

Service Friendly Design

Designed to make maintenance and service simple and easy.

Hustler TrimStar 36

Welded Steel Deck

Durable 10 ga. plus 11ga. reinforced steel with 11 ga. formed channel rolled edge. (36" deck model is 7ga. with 7ga. reinforced steel)
key specs
WARRANTY
5 Year / 1200 Hour (First 2 Years No Hour Limit)
DRIVE_TIRE
20 x 6.5-10
FRONT_TIRE
11 x 4-5 semi-pneumatic
TRANSMISSION
Hydro-Gear ZT-2800®
CUTTING_WIDTH
36"
FUEL_CAPACITY
3.4 gal.
CUTTING_HEIGHT
1.5" to 4.5"
ENGINE_HORSEPOWER
15
GROUND_SPEED_(FWD)
Up to 6.3 mph
ENGINE_MANUFACTURER
Kawasaki FS541
engine
COOLING
Air Cooled
AIR_CLEANER
Oval canister, dual element
DISPLACEMENT
603cc
ENGINE_WARRANTY
3 Year Limited
ENGINE_HORSEPOWER
15
ENGINE_MANUFACTURER
Kawasaki FS541
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-2800®
FUEL_CAPACITY
3.4 gal.
PARKING_BRAKE
Internal transmission mechanical brake
HYDRAULIC_COOLING
Pump mounted fan
GROUND_SPEED_(FWD)
Up to 6.3 mph
RESERVOIR_CAPACITY
2 qts per side
deck
SPINDLES
Aluminum with steel shaft and sealed ball bearings
DECK_LIFT
Hand Operated
DECK_DEPTH
5"
BLADE_LENGTH
17.86"
CUTTING_WIDTH
36"
DECK_MATERIAL
7ga + 11ga reinforced steel
CUTTING_HEIGHT
1.5" to 4.5"
SPINDLE_MOUNTS
Reinforced 11 ga.
BLADE_TIP_SPEED
18,400
DECK_ENGAGEMENT
Electric PTO Clutch
IMPACT_TRIM_AREA
11ga formed channel rolled edge
NUMBER_OF_BLADES
2
construction
FRAME
1.5" x 2" steel tubing
FRONT_AXLE
Fabricated with tapered roller bearings
FRONT_CASTER_FORK
Fabricated 3/8" steel
FRONT_CASTER_WHEEL
Tapered wheel bearings and debris cap
general
CUP_HOLDER
dimensions
WEIGHT_(LBS)
560
HEIGHT_(INCHES)
42.5
LENGTH_(INCHES)
76.7
DRIVE_TIRE_(INCHES)
20 x 6.5-10
FRONT_TIRE_(INCHES)
11 x 4-5 semi-pneumatic
WIDTH_W/_CHUTE_UP_(INCHES)
37
TIRE-TO-TIRE_WIDTH_(INCHES)
35
PRODUCTIVITY_(ACRES_PER_HOUR)
1.88
warranty
Warranty
5 Year / 1200 Hour (First 2 Years No Hour Limit)
dimensions with catcher
CATCHER_STYLE
Side Catcher
CATCHER_CAPACITY
3.5 bushel
POWERED_/_NON-POWERED
Powered
MOWER_WIDTH_W/_CATCHER
56.7"
MOWER_LENGTH_W/_CATCHER
74.55"
